RC6GS V2 6CH RC Transmitter and Receiver R7FG 2.4g Gyro Two-Way Transmission Telemetry Receiver Radio Remote Controller L443
RC6GS V2 6CH RC Transmitter and Receiver R7FG 2.4g Gyro Two-Way Transmission Telemetry Receiver Radio Remote Controller L443
6 Channels: CH3-CH6 can be customized to VR, three-way switch, and tact switch. CH5-CH6 can be used to FPV Head Tracking, the SWA can be used for Cruise Control mode, it helps the driver easily to control crawler go downhill.

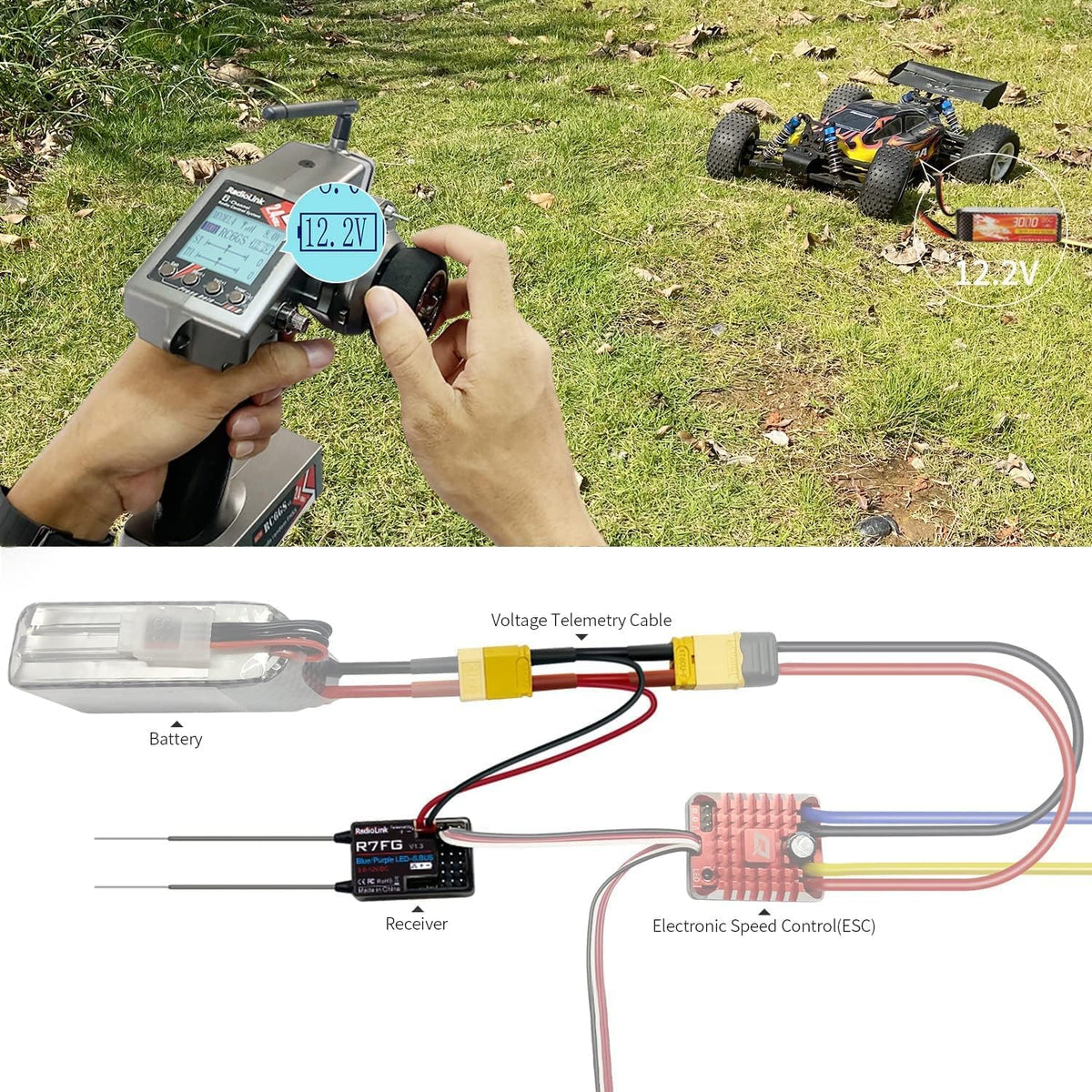

Real-time Telemetry and Gyro Function: This controller can real-time information on radio screen, like the vehicle's battery voltage, RSSI, etc. Receiver R7FG built-in gyro can keep the vehicle in a straight line, the gyro sensitivity can be adjusted by the VR switch, which fits for drifting and on-road cars.
Dual Programmable Mix Control: Any two channels can be mixed control and each channel can be customized. That's friendly for twin-engine vehicles, such as tanks, boats, 4 wheel steering.
Two-way Communication: Real pseudo random algorithm FHSS communication technology makes RC6GS V2 control distance up to 1900 feet (600meters) and supports multiple RC6GS V2 are working in the same area without any interference.

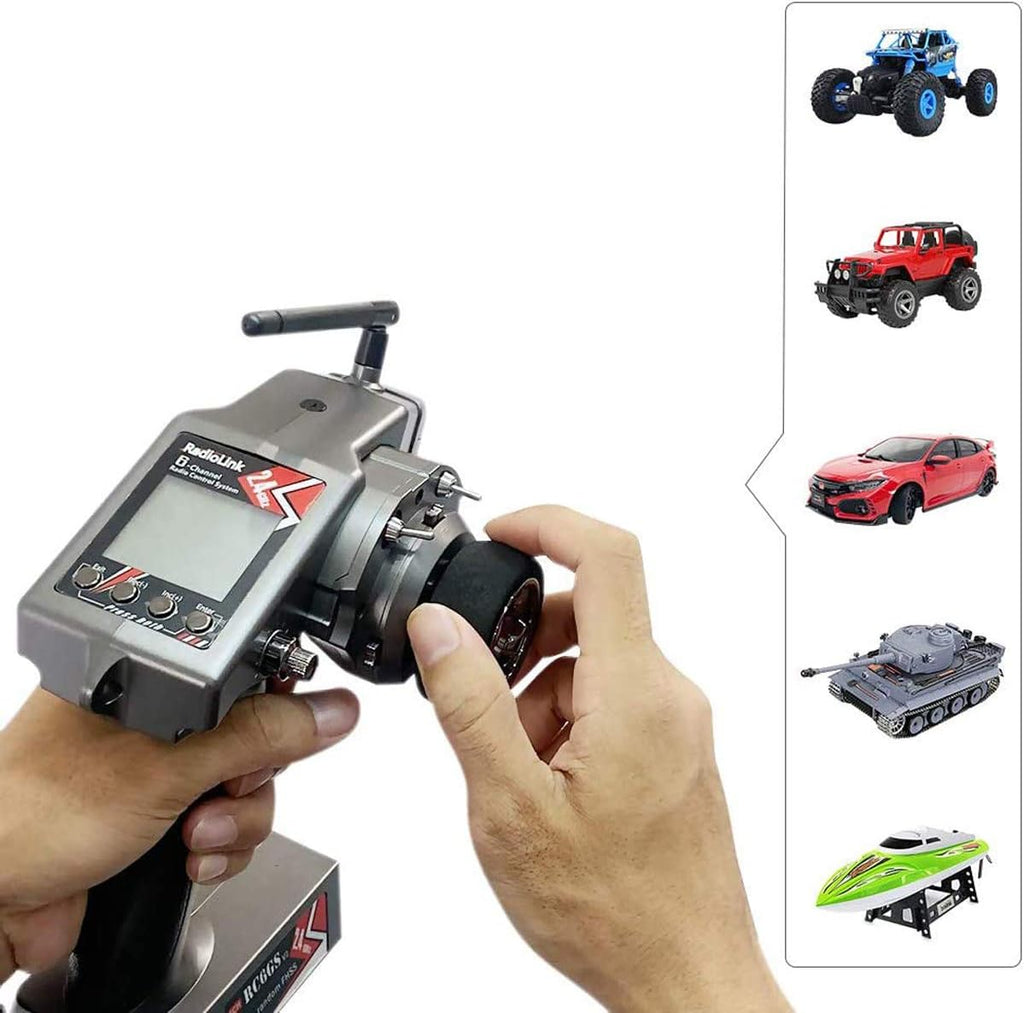

Adapts to Most of Types Vehicles: with 10 models storage and each model can be set up and named separately, assigning 1 of 10 receivers to work separately on menu ID SEED.

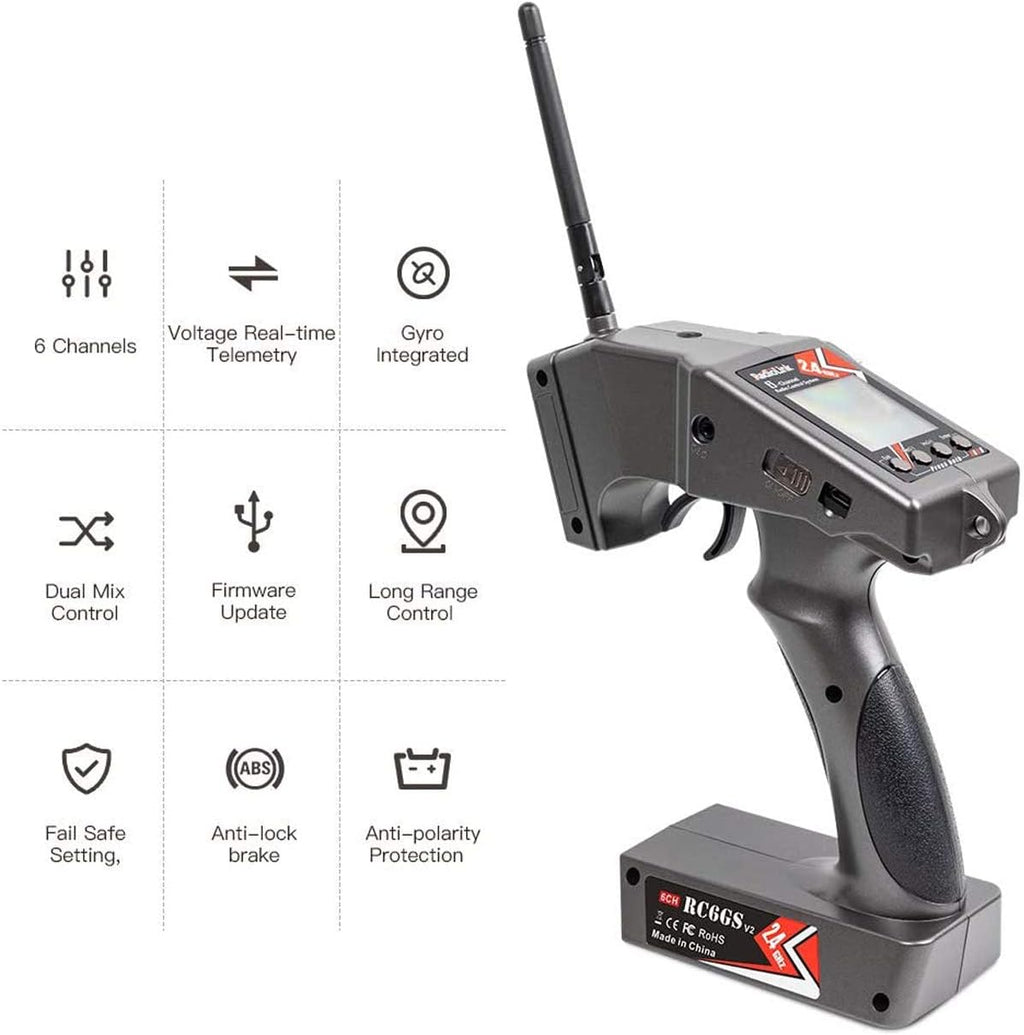

RC6GS V2 Overview
RC6GS V2 can be works with: R7FG/R6FG/R6F/R4FGM/R8F
Easy to Bind with Radio
Only press bind button for 1 second to bind after power up radio and receiver.
1)Change Gyro or Normal modes : press the Bind Button 3 times within 1 second.
2)Factory default bind completed, it will be show a signal tower on screen when power radio and receiver, that's mean you No need bind.
Radiolink Voltage Protection System
1)RC6GS v2 controller with reverse polarity protection circuit, do not worry about it damage even you insert wrong polarity.
2)JST(2Pin)connector is easily adapted for various battery, such as: 6*AA batteries(included battery tray) or 2s-4s LiPo, Lithium battery.( Battery sold separately )
3)Low Voltage Remind: set up in Menu (ALARM).
RC6GS V2 Transmitter:
Channels: 6CH
Spread Spectrum: FHSS
Antenna Length: 106mm
Model: Cars/Boats
Operating Current: 80mAh-120mAh
Frequency: 2.4GHz ISM band (2400MHz-2483.5MHz)
Operating Voltage: 4.8-15.0V DC(2s-4s lipo battery or 4*1.5AA)(Battery NOT included)
Screen: 128*64 resolution, LCD back light
Low Voltage Alert: Yes(Below 4.6V)
Size: 26.5*20.8*13.6cm

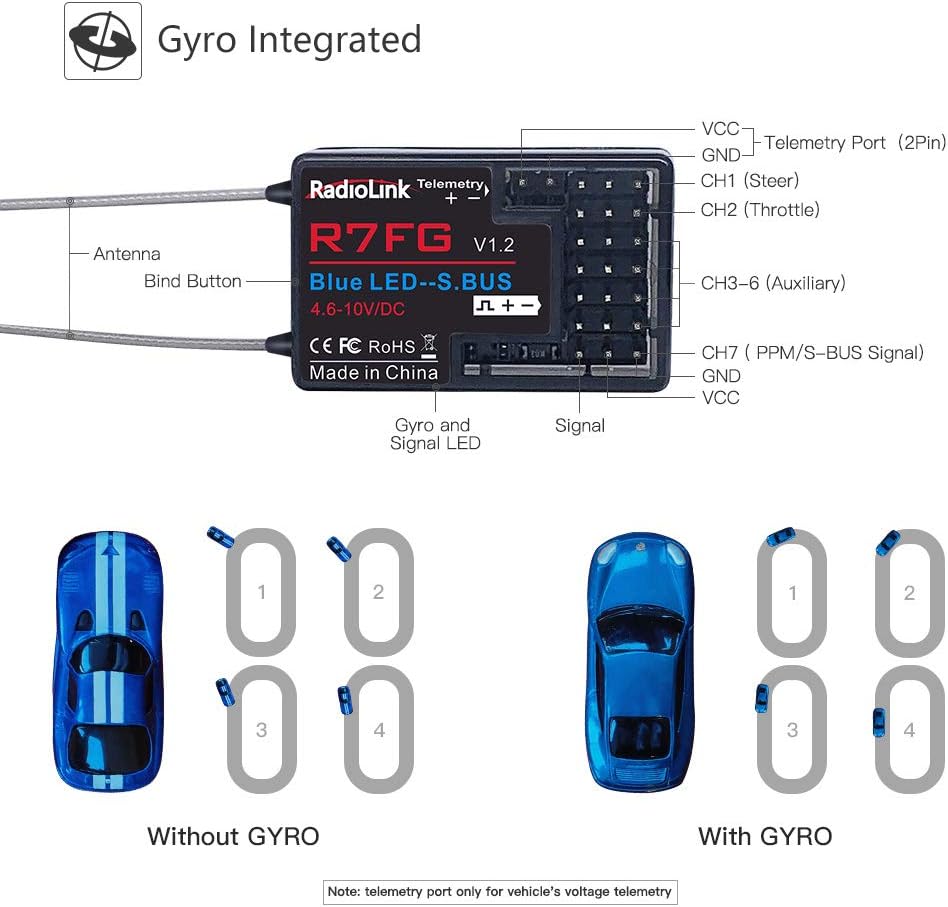

R7FG Receiver:
Channels:7CH
Signal output: PPM/PWM/S-BUS, 2.4GHz
Receiver operating voltage: 4-10V
Modulation Mode: GFSK
Antenna Length: 200mm
Control Distance: over 600 meters
Power Supply: 4.6v-10v DC
RF Power: <10dbm
Channel resolution: 4096
Working Current: 30mA
Applicable model: car,boat
Size: 3.5*1.8*1.5cm
Weight: 6g
Package Included:
Radiolink RC6GS V2 Transmitter X 1
Radiolink R7FG Receiver X 1
User Manual X 1
Adapter cable X 1
Lanyard X 1
